Discover Fadal Parts for Every Need : A Comprehensive Guide

Fadal Parts For Your CNC Machine

Fadal parts are essential to keeping your CNC machine running smoothly. Electrical problems are common with CNC machines. Whether it's a blown fuse, damaged wiring, or faulty switches, these issues can cause the device to malfunction. ITSCNC offers a wide range of high-quality new and reman Fadal replacement parts, including servo motors, ballscrew, belts and amplifiers. These fadal parts can help you get your machine back up and running as quickly as possible.

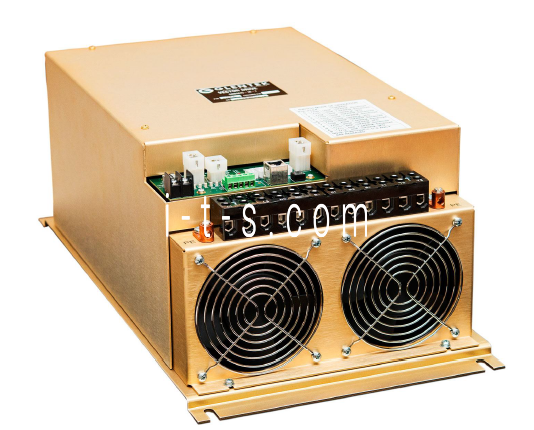

Glentek Universal Spindle Drive 5hp-20hp, INV-0098G

Designed to elevate standard three-phase induction motors and CNC Machines within the 5hp-20hp range, this Glentek Universal Spindle Drive is an ideal solution for various configurations. It offers operational versatility by accommodating Close Loop Vector, Inverter, Rigid Tap, and standard non-RT functionality.

This dependable Baldor motor also comes with an upgraded encoder, improving precision and control of the spindle operations. It also includes a fan to ensure optimal performance.

Fadal Valve Spindle Air Seal Retrofit Kit, VLV-0006

The Valve Spindle Air Seal Retrofit Kit, VLV-0006 converts a generally moisture intolerant door operating apparatus from overhead to underground use and for operating a swinging door. The kit additionally protects the door operating apparatus from contamination encroachment within its underground location. A second sealing ring (30) is mounted with a moisture tight fit in the first hole (14) of the upper enclosure portion (10). Preferably, both the first and second sealing rings are composed of a self-lubricating engineering thermoplastic.

ITS DC Brush Short Protected XYZAB Axis Amplifier, AMP-0021-ITS

The ITS DC Brush Short Protected is designed to work with the larger XYZAB amplifiers on the Fadal CNC machine. This kit includes a current sensor and thermal protection for your machine. When the brushes contact (short) each commutator plate at zero torque, there is no current flow between the power leads and the coil. This uselessly wastes power and causes rapid battery drain. Carbon brushes, which are commonly used, will not weld to the commutator plates.

GATES Belts V-Belts Set of 6, BEL-0007

GATES Belts V-Belts Set of 6, BEL-0007 deliver reliable power transmission for the smooth operation of your equipment. They help reduce jerks and vibration during operation, resulting in better quality finished products. They also extend the lifespan of your machine by reducing the amount of wear and tear on drive components.

These Fadal belts are designed for small multiple V-belt precision drives. Its ribbed design reduces bending stress on miniaturized drive components. It resists hardening and cracking, oil, heat, ozone, weather, and aging for long service life.

Fadal Spindle Motor Pulley 2 Belt Pozi Drive, PUL-0019

Fadal Spindle Motor Pulley 2 Belt Pozi Drive, PUL-0019 combines the machining tool’s shaft with the drive, eliminating the limitations of belts and pulleys. They can also achieve higher speeds than conventional spindles. However, they do not provide constant power over the entire speed range.

The motor-spindle design has to balance power, speed and stiffness. A rotor imbalance can damage tooling, overheat the shaft and even destroy the motor. Performing regular maintenance on your Fadal CNC machine is essential. Lubrication and calibration can help prevent breakdowns and improve accuracy. It is also important to check connections frequently to ensure they are secure. If you notice any problems, contact a repair technician as soon as possible.

Fadal Bearings

The bearings on pulleys are a critical component of the design. Depending on the application, the type and size of bearing used determines the performance of the pulley. Bearings can also be provided with seals and greasing ports to improve performance and extend the life of the pulley.

Fadal Shafts

It can be challenging to properly center two shafts when connecting them together. Shaft deflection in operation, thermal expansion, and warping of support plates over long periods of use can make it difficult to keep two shafts centered. Miki’s couplings help to resolve this problem and ensure the correct connection between shafts.

Fadal WOODRUFF Keys

Woodruff keys are semi-circular shaped keys that fit into a keyway in the shaft and protrude from the side. They're often used to hold gears and other maching components in place on shafts, preventing them from sliding out of the groove or shearing under high loads.

The curved section of the key is pressed into a recessed, half-moon key seat, while the flat side interfaces with the slot in a mating hub or gear. This tighter fit reduces play and stress concentrations in the keyway, and improves concentricity of the assembly.

To correctly size a woodruff key, you must measure its thickness and bottom width. You can also use a standardized key sizing chart to determine the dimensions needed for your application.

Fadal Switch, Hall Effect, High Grade, Honeywell, ELE-2500

The Honeywell Hall Effect Proc Switch is a high-grade electronic component that fits seamlessly and operates flawlessly with your Fadal CNC machine. This OEM replacement part is an upgrade to its predecessor, and it surpasses expectations for quality, reliability, and performance.

These fadal switches use a magnetic field to detect rotary movement and are ideally suited for brushless DC motor commutation, tachometer, counter pickup, and robotics control. They have both single-pole and dual-open-collector outputs and can be wired in series. They also feature a low-profile design that makes them easy to install in tight spaces. They are naturally bounce free and have a long lifetime.

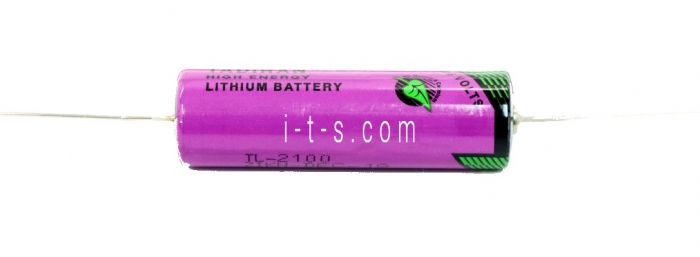

Fadal Tadiran Tl 2100 Fadal CPU Battery 3.6V, ELE-0082

The Fadal Tadiran Tl 2100 Fadal CPU Battery 3.6V soldered to the CPU board on your Fadal CNC machine provides memory backup power to protect parameters and programs when the machine is turned off. The replacement 3.6V battery ELE-0082 is a high performance Lithium Cylindrical battery with 'Lithium Thionyl Chloride' chemistry that provides superior energy and long service life.

These AA size batteries have more then double the cell voltage of standard lithium primary cells, which means they can draw current over a longer time with less self-discharging. Hermetically sealed to withstand impacts this battery is designed for use in demanding applications.

Conclusion

At ITSCNC, customers can find a comprehensive selection of Fadal parts online and upgrades to suit their requirements. We offer everything from basic replacement parts to advanced upgrades that can significantly improve the performance of your CNC machines. Some of the most popular Fadal machine parts and upgrades offered by ITSCNC include Fadal spindle drives, Fadal axis amplifier, circuit component, Fadal drawbar assembly and many more. For more fadal cnc parts and support services contact us at 1-800-342-3475!
